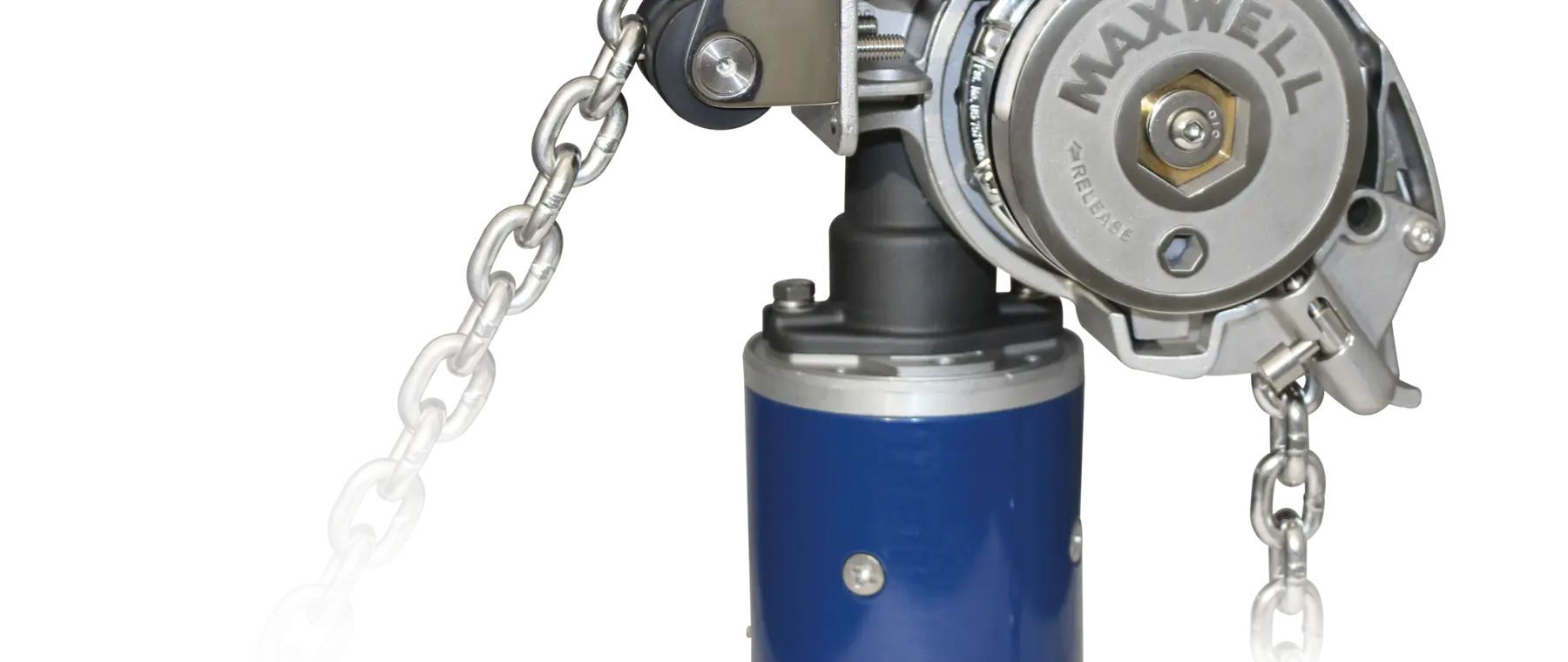

Maxwell Marine has launched the BH8, a concealed anchoring system developed to give boatbuilders and refit yards more freedom over where the windlass and rode-handling hardware are installed. The unit is intended particularly for concealed bulkhead arrangements and can be configured for either bow or stern anchoring.
That flexibility is relevant to smaller leisure boats because anchoring hardware often competes with lockers, seating and deck access for limited space. Maxwell’s bracket can be flipped to suit different installation layouts, allowing the mechanism to be hidden while the rode is guided through the hull or bulkhead.
Automatic free-fall speeds anchor deployment
The BH8 includes automatic free-fall, allowing the anchor to deploy rapidly without having to power the windlass through the entire descent. Maxwell combines that function with its Wave Design chainwheel, which is intended to handle rope-and-chain combinations smoothly and reduce the likelihood of jamming during retrieval.
The standard system supports 6mm, 7mm and 8mm chain, together with nylon rope from 12mm to 16mm depending on the chosen configuration. Optional chainwheels broaden compatibility further, and Maxwell also offers a roller-panel accessory to guide the rode through a bulkhead or stern installation.
Sealed gearbox is designed for concealed installations
Because much of the mechanism can sit out of sight, access and corrosion protection matter. Maxwell uses a sealed oil-bath gearbox manufactured from hard-anodised marine alloy, with a worm-and-wheel drive intended to protect the internal components and provide consistent operation in the marine environment.
The BH8 is available in 12V, 24V and 48V versions. Maxwell quotes pulling capacity of up to 900kg and static holding capacity of up to 1,200kg, figures that describe the windlass system itself rather than the holding power of the anchor on the seabed.
Bow or stern anchoring broadens the use case
Although concealed windlasses are often associated with larger yachts, Maxwell’s wider anchoring range serves boats from about six metres upward. The BH8’s ability to work in stern as well as bow configurations makes it particularly interesting where an owner wants a cleaner deck or needs a second anchoring arrangement without a conventional exposed windlass.
Correct sizing still depends on vessel displacement, anchor and rode choice, installation geometry and expected loads. Owners considering the BH8 for an existing boat should therefore treat the quoted capacities as system specifications and have the complete anchoring arrangement checked against Maxwell’s installation guidance.
