The Dragonfly 28 is a compact trimaran that changes its beam between sailing and storage modes. Its folding floats bring a 6.50-metre beam down to 2.54 metres, a relevant distinction for owners who cannot keep a wide multihull on a standard marina berth.
The foldable geometry
The Danish builder lists a centre-hull length of 9.00 metres, with folded overall length varying by touring or performance version. The same published boat has a beam of 6.50 metres with floats extended.
A berth or road journey must be planned around the actual folded dimensions and hardware rather than a generic 28-foot designation. Crew should practise the folding procedure exactly as prescribed.
Two versions, different sail plans
The Touring version carries a 37-square-metre mainsail and an 18.5-square-metre jib, while the Performance uses a 43-square-metre main and 21.5-square-metre jib. The builder lists larger downwind options as well.
Sail area and mast length have practical implications for rigging, insurance and handling. The named package matters more than assuming all Dragonfly 28s have identical equipment.
Draft and capacity
The board-up draft is listed at 0.40 metres, increasing to 1.70 metres with the board down. Standard dry weight is approximately 2,100 kilograms, excluding added equipment, with a 750-kilogram maximum payload.
Shallow draft with the board raised is useful in suitable water but not an excuse to ignore obstructions or weather. Load includes crew and carried items and should be matched to the actual rating plate.
A weekend cruising trimaran
The smaller central hull provides a cruising space suited to couples and family trips, with optional interior arrangements. A buyer should inspect how galley, berths and gear storage fit their real routine.

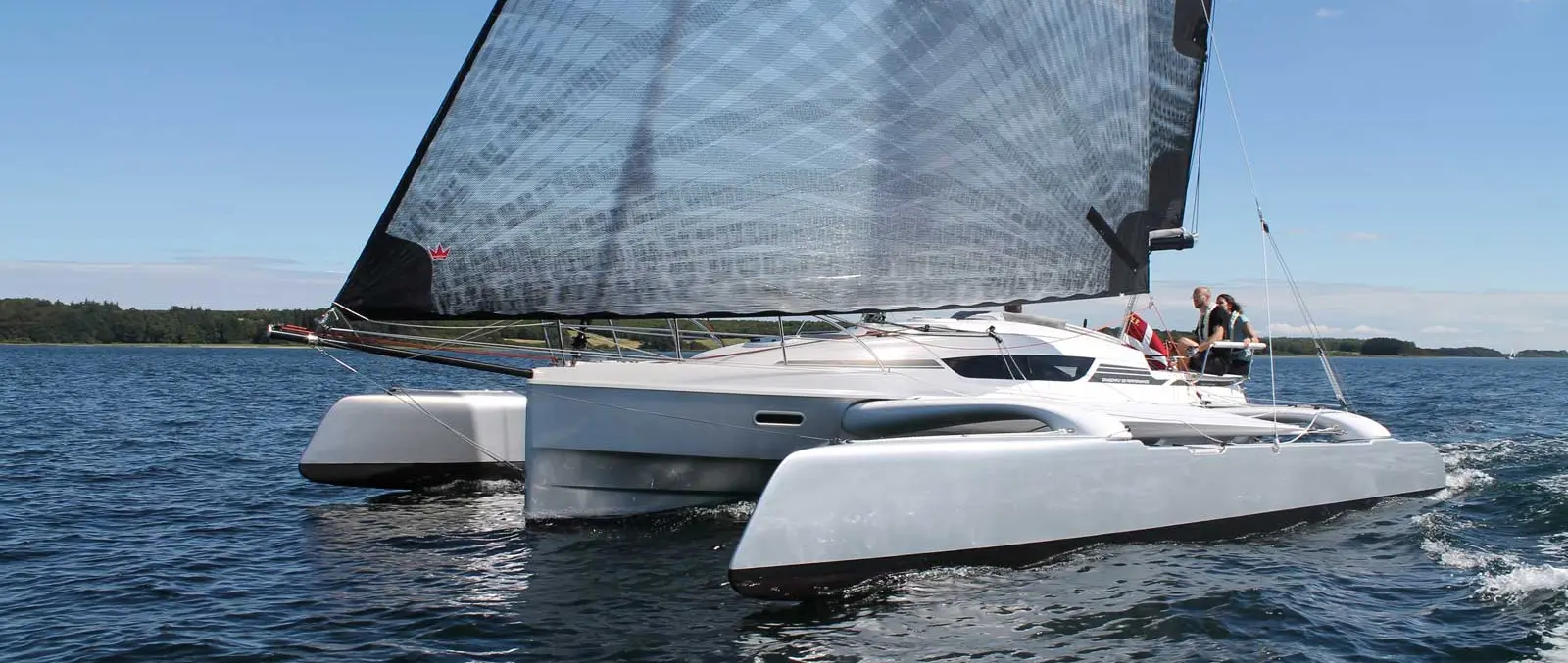

This article uses Dragonfly's official specifications and model photograph. It describes the existing range rather than inventing a September premiere.
Primary source: official builder specifications. Independently written by Leisure Boat Guide.
